Products » Honda » Fourtrax Rancher ES
Model Quick Search

$4,299.00

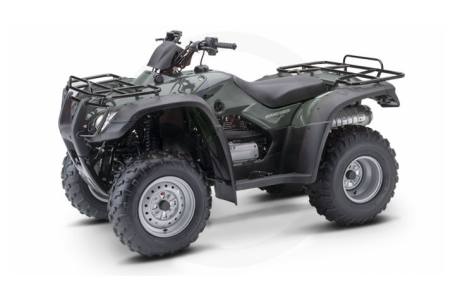

2006 Honda Fourtrax Rancher ES
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Four-wheel-drive more than you need? The FourTrax Rancher ES comes standard with just about all the same stunning features as the Rancher 4x4 ES, including Honda's proven ESP shifting and easy-to-read LCD instrumentation. Because you never know when work will turn into play.

    Engine
    • Engine Type: 329 cc air-cooled OHV dry-sump longitudinally mounted single-cylinder four-stroke
    • Bore and Stroke: 78.5 mm x 68.0 mm
    • Carburetion: 32 mm CV
    • Ignition: CD with electronic advance
    • Starter: Electric with auxiliary recoil
    Drive Train
    • Clutch Automatic
    • Transmission: Electric shifting five-speed with reverse
    • Driveline: Direct rear driveshaft
    Chassis / Suspension / Brakes
    • Front Suspension: Independent double-wishbone; 5.9 in. travel
    • Rear Suspension: Swingarm with single shock; 5.9 in. travel
    • Front Brakes: Triple-sealed dual hydraulic drums
    • Rear Brake: Sealed mechanical drum
    • Front Tires: 24 x 8-12
    • Rear Tires: 25 x 11-10
    Dimensions
    • Length: 78.1 in.
    • Width: 45.0 in.
    • Height: 44.1 in.
    • Wheelbase: 49.3 in.
    • Seat Height: 32.0 in.
    • Ground Clearance: 7.3 in.
    • Turning Radius: 8.5 ft.
    • Dry Weight: 511.0 lbs.
    • Fuel Capacity: 3.4 gal., including 0.8 gal. reserve
    Other
    • Available Colors: Red, Yellow, Olive
    • Model ID: TRX350TE
    Factory Warranty Information
    • 6 months: Coverage of defects in materials and workmanship
    NOTES:

    Model ID: TRX350TE


    Specifications

    Engine
    Engine Type Engine Type: OHV dry-sump longitudinally mounted four-stroke
    Displacement 329 cc
    Bore x Stroke 78.5 x 68.0 mm
    Cylinders 1
    Engine Cooling Air-cooled
    Fuel System 32mm CV
    Starting System Electric with auxiliary recoil
    Chassis
    Front Suspension Independent double-wishbone; 5.9 in. travel
    Front Brake Type Triple-sealed dual hydraulic drums
    Front Tires 24 x 8-12
    Rear Suspension Swingarm with single shock; 5.9 in. travel
    Rear Brake Type Sealed mechanical drum
    Rear Tires 25 x 11-10
    Dimensions/Capacities
    Dry Weight 511.0 lbs.
    Fuel Capacity 3.4 gal., including 0.8 gal. reserve
    Ground Clearance 7.3 in.
    Machine Dimensions (LxWxH) 78.1" x 45.0" x 44.1"
    Wheelbase 49.3 in.
    Drive Train
    Drive Train Direct rear driveshaft
    Transmission Electric shifting five-speed with reverse
    General
    Colors Red, Yellow, Olive
    Warranty 6 months: Coverage of defects in materials and workmanship

    Compare Models

    		 Print








    Year 2006
    Manufacturer Honda
    Model Fourtrax Rancher ES
    Style Utility
    MSRP* $4,299.00
    Chassis
    Front Suspension Independent double-wishbone; 5.9 in. travel
    Front Travel
    Front Brake Type Triple-sealed dual hydraulic drums
    Front Tires 24 x 8-12
    Rear Suspension Swingarm with single shock; 5.9 in. travel
    Rear Travel
    Rear Brake Type Sealed mechanical drum
    Rear Tires 25 x 11-10
    Frame
    Dimensions/Capacities
    Dry Weight 511.0 lbs.
    Front Rack Capacity
    Rear Rack Capacity
    Towing Capacity
    Fuel Capacity 3.4 gal., including 0.8 gal. reserve
    Ground Clearance 7.3 in.
    Machine Dimensions (LxWxH) 78.1" x 45.0" x 44.1"
    Wheelbase 49.3 in.
    Drive Train
    Drive Train Direct rear driveshaft
    Final Drive
    Transmission Electric shifting five-speed with reverse
    Engine
    Engine Type Engine Type: OHV dry-sump longitudinally mounted four-stroke
    Displacement 329 cc
    Bore x Stroke 78.5 x 68.0 mm
    Cylinders 1
    Engine Cooling Air-cooled
    Fuel System 32mm CV
    Starting System Electric with auxiliary recoil
    Alternator
    General
    Speedometer
    Tachometer
    Odometer
    Lighting
    Colors Red, Yellow, Olive
    Warranty 6 months: Coverage of defects in materials and workmanship
